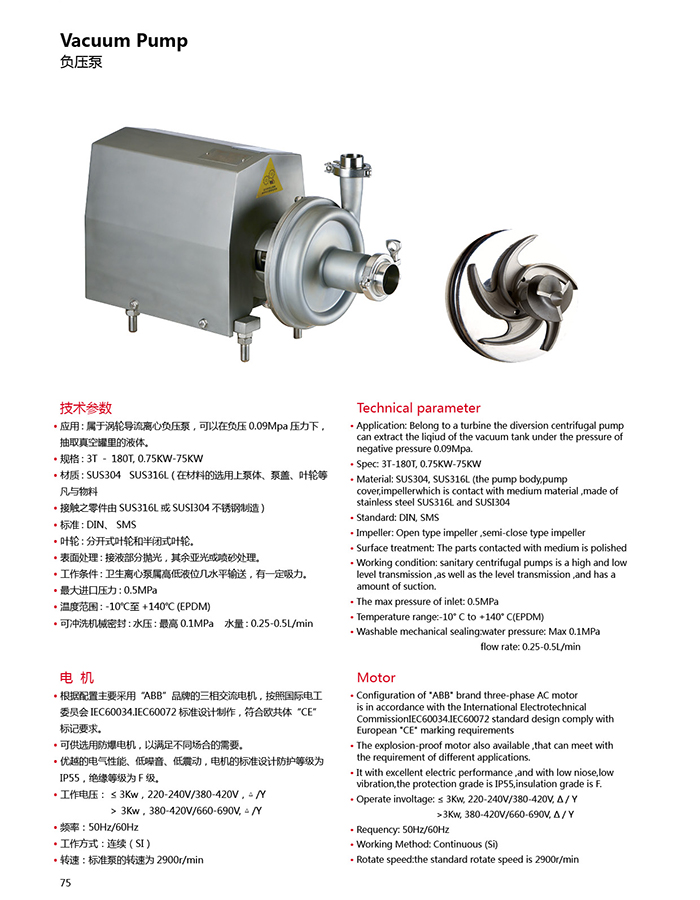

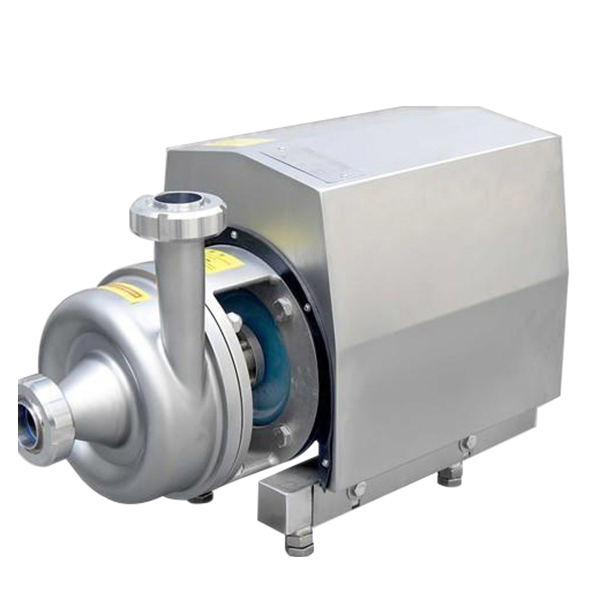

Vacuum Pump
Technical parameter
·Application: Belong to a turbine the diversion centrifugal pump can extract the liqiud of the vacuum tank under the pressure of negative pressure 0.09Mpa.
·Spec: 3T-180T, 0.75KW-75KW
·Material: SUS304, SUS316L (the pump body,pump cover,impellerwhich is contact with medium material, made of stainless steel SUS316L and SUSI304
·Standard: DIN, SMS
·Impeller: Open type impeller, semi-close type impeller
·Surface treatment The parts contacted with medium is polished
·Working condition: sanitary centrifugal pumps is a high and low level transmission,as well as the level transmission, and has a amount of suction.
·The max pressure of inlet: 0.5MPa
.Temperature range:一10℃ to+140℃(EPDM)
·Washable mechanical sealing:water pressure: Max 0.1MPa
flow rate: 0.25-0.5L/min
Motor
·Configuration of "ABB" brand three-phase AC motor is in accordance with the International Electrotechnical CommissionIEC60034.IEC60072 standard design comply with European "CE" marking requirements
·The explosion一proof motor also available,that can meet with the requirement of different applications.
·It with excellent electric performance,and with low niose,low vibration,the protection grade is IP55,insulation grade is F.
·Operate involtage:<3Kw, 220-240V/380-420V,△/Y
>3Kw, 380-420V/660-690V,△/Y
·Requency: 50Hz/60Hz
·Working Method: Continuous (Si)
·Rotate speed:the standard rotate speed is 2900r/min
